Alupanel X

Engineered with a resilient 0.15mm surface, Alupanel X is the definitive choice for high-volume, flat-sheet applications. It provides the trusted rigidity and smooth surface required for direct-to-substrate printing and vinyl application, offering a professional finish for general signage projects that demand both durability and cost-efficiency.

Why use Alupanel X?

Your everyday panel
Has a 100% Recycled LDPE core and can be fully recycled after use
Meets fire test EN 13501 to class C-s2,d0 *
High UV resistance
Incredibly flat, smooth finish **
Suitable for digital/screen printing, vinyl application and painting ***
Excellent value
1 year warranty ****

* Includes all painted finishes (White and Black), excludes Brushed Aluminium

** Brushed finishes are produced from natural aluminium and therefore as a natural raw material and despite each sheet being very similar the process can make the finish and tone differ slightly between sheets and batches

*** Black and Brushed (Aluminium) are printable but do not have a digital finish or guarantee. Please test print first and consult your hardware for supplier before printing on reflective surfaces.

**** For internal and external use. Brushed Aluminium only has a 1-year warranty for internal use

EXPAND COLLAPSE

Alupanel sheets have received a good feedback among our customers. The quality of the sheet is excellent....
KalusteMuovi Virtale Oy, Finland

Full Details

Alupanel X (formerly Alupanel ECOPANEL) is the highly efficient, economic solution designed as your go-to material for all flat applications. Offering amazing value for money, this panel is the obvious choice for short-term projects, such as hoarding or large-scale vinyl graphics and direct print, where structural load-bearing is not required. Its flat, smooth finish and availability in core colours make it a versatile substrate for immediate graphic application, delivering reliable performance and cost-effectiveness for everyday needs.

Features and Benefits

Exceptional Value for Money — Engineered to deliver maximum cost efficiency for flat-sheet applications without compromising on surface quality or print performance, making it the obvious choice for high-volume everyday projects.

Smooth, Print-Ready Surface — The uniform, flat finish provides reliable ink adhesion for direct-to-substrate UV printing and consistent, bubble-free vinyl application across large format sheets.

0.15mm Skin Rigidity — Provides the structural stiffness needed for flat-panel sign, hoarding, and display applications without the weight or cost of a heavier gauge panel.

Versatile Core Colour Range — Available in a focused range of stock colours including white, black, and brushed aluminium, enabling immediate project start without colour lead times for standard sign and display applications.

Lightweight and Easy to Handle — Reduced panel weight simplifies large-format handling, installation, and logistics, lowering project labour costs for high-volume sign and hoarding programmes.

UK Manufactured — British production guarantees consistent flatness, surface quality, and availability, providing a reliable domestic alternative to lower-quality imported economy panels.

Alupanel X is available in Gloss and Matt Signal White, Black matt RAL 9005 Matt, Brushed Aluminium Silver and primer

Alupanel X has a one year warranty for internal and external use on White and Black painted finishes. Brushed finishes in this range only has a warranty for internal use.

For further information, you can access the product brochures and technical documents below.

VIEW BROCHURES

Applications

Alupanel X is recommended for flat applications only.

Wayfinding
Vinyl Application

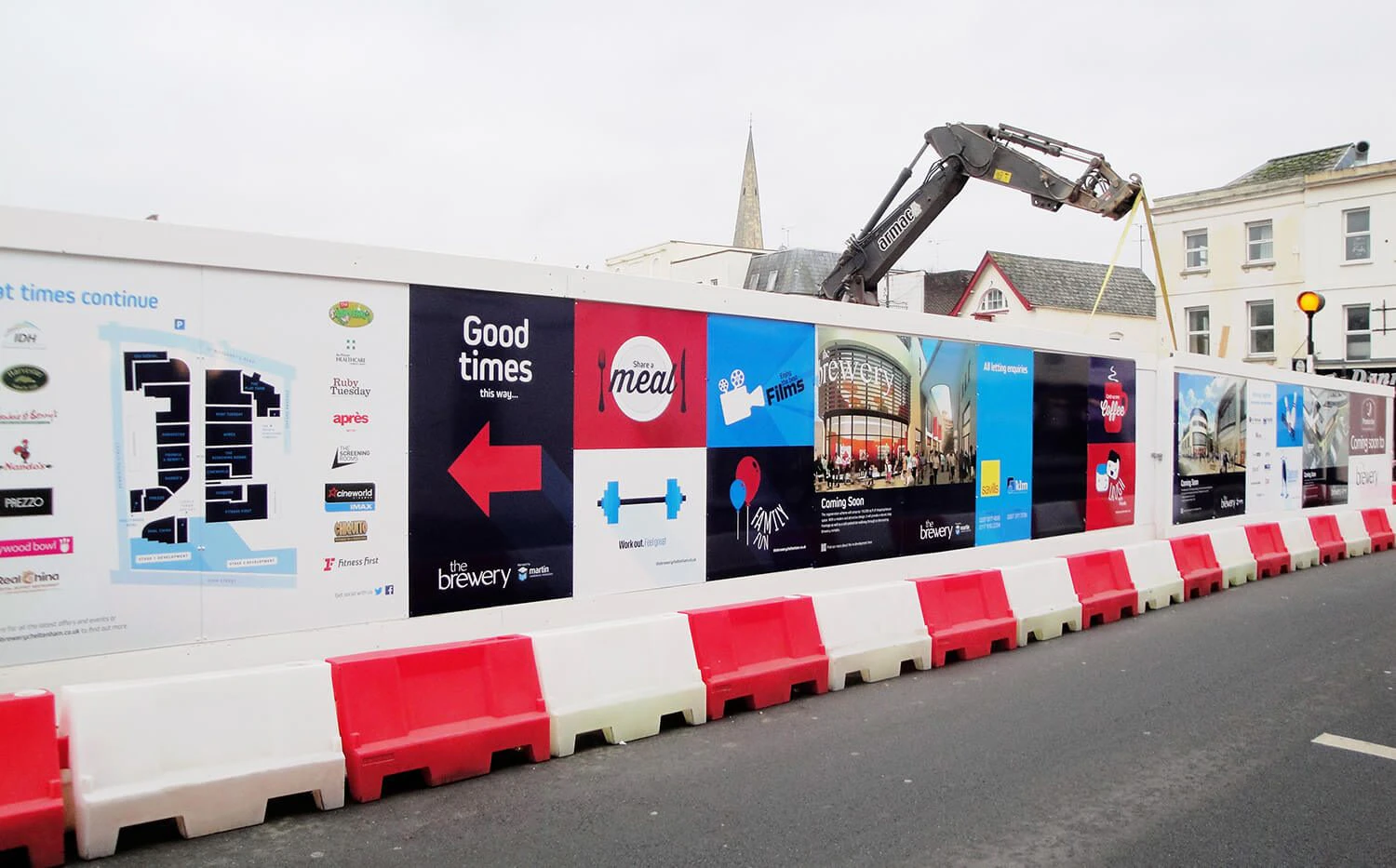

Hoarding Panels
Outdoor Advertising
Direct UV & Screen Printing

04 News Print Week Hoarding 1Bd784A51D 1000X1000

11401274 884475078292033 5973896750015388336 N 1000X1000

Technical

Here are the sheet sizes and thicknesses available as standard along with the technical specification of Alupanel X.

SIZES / THICKNESS PANEL PROPERTIES DIMENSIONAL TOLERANCES SURFACE PROPERTIES

Panel Thickness (mm)	2	3
Skin Thickness (mm)	0.15	0.15
Weight (KG/m2)	2.46	3.4
1000mmx2015mm
1000mmx2440mm
1000mmx2050mm
1000mmx3050mm
1220mmx2440mm
1220mmx3050mm
1250mmx2550mm
1250mmx3050mm
1500mmx3050mm
1500mmx4050mm
1525mmx3050mm
1560mmx3050mm
2000mmx3050mm
2000mmx4050mm
2050mmx3050mm
2050mmx4050mm

Panel Thickness (mm)	2	3
Sound Absorption	0.05	0.05
Sound Attenuation	23	24
Water Absorption % by Volume	0.01	0.01
Thermal Performance R Values
Core Composition	100% Recycled LDPE	100% Recycled LDPE
Fire Performance	EN 13501 C-s2,d0 (All painted finishes, excludes Brushed and Mirror)	EN 13501 C-s2,d0 (All painted finishes, excludes Brushed and Mirror)
Tensile Strength of Aluminium Layers	149MPa	149MPa

Panel Thickness (mm)	+/- 0.2
Width (mm)	-0 +2
Length (mm)	-0 +3
Diagonal	-0 +5
Thermal Expansion	2.4mm/m @100˚C Temp Difference
Aluminium Thickness	± 0.02

Paint Thickness (microns)
Pencil Hardness	>HB
Toughness of Coating	3T
Temperature Resistance	-50˚C to +80˚C
Impact Strength (kg/CM2)	50
Boiling Water Resistance	Boiling for 2hrs without change
Acid Resistance	Immerse Surface in 2% HC1 for 24hrs without change
Alkali Resistance	Immersed surface in 2% NaOH for 24hrs without change
Oil Resistance	Immerse Surface in 20# engine oil for 24hrs without change
Solvent Resistance	Cleaned 100 times with Dimethylbenzene without change
Cleaning Resistance	>1000 times without change
Peel Strength	>5 Newton / mm

Colours

Alupanel X is available in Gloss and Matt Signal White, Black matt RAL 9005 Matt, Brushed Aluminium Silver and primer

For more information on other colours please contact your local distributor or sales representative

GLOSS MATT BRUSHED
